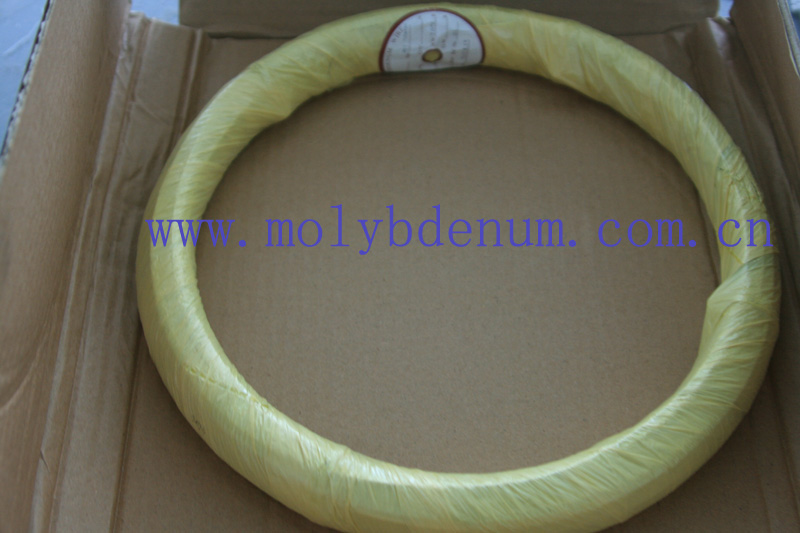

Molybdenum Wires


The molybdenum wires is principally used in the high-temperature field of molybdenum furnace and radio tube outlets, also in thinning the molybdenum filament, and the molybdenum rod in heating materials for high-temperature furnace, and side-bracket/bracket/outlets wire for heating materials.

moly wire/molybdenum wiremoly wire/ molybdenum wiremoly wire/ molybdenum wire

As one of tungsten & molybdenum material professional manufacturers, our factory can provide various molybdenum wire with the diameter among 0.08~3.0mm and the molybdenum rods with maximum diameter of 60.0mm, we can also make your orders as your requirements. There are several types, such as coiling, straight or rolling and black molybdenum wire and molybdenum rods. Recently we not only enhance our outputs and scales of the molybdenum wire and rods, but also reconstruct the production line to improve the technology. By introducing into advanced y-type rolling mill and the butt-welding equipments of molybdenum spraying wire, we gain more clients trust to satisfy different requirements.

Introduce(detail):

The molybdenum wire is principally used in the high-temperature field of molybdenum products furnace and radio tube outlets, also in thinning the molybdenum wires filament, and the molybdenum rod in heating materials for high-temperature furnace, and side-bracket/bracket/outlets wire for heating materials.

Application

Mol: Applied for making hook, mandrel, wire for spark profile cutting, heater rod in H2 furnace, guide rod, lead, etc.

MoLa: Applied for making high temperature-resistance devices, such as support, guide rod, heater rod in furnace.

Diameter Tolerance

Diameter

(um)

Weight

(g/200mm)

200mm weight tolerance

Diameter tolerance

I

II

I

II

20<d≤30

0.65<p≤1.47

±2.5

±3





30<d≤40

1.47<p≤2.61

±2

±3





40<d≤400

2.61<p≤256.2

±1.5

±3





400<d≤600

-

-

-

±1.5

±2.5

600<d≤2500

-

-

-

±1.0

±2.0

Applications:
Code
Description
Kind
Application
MO1
Pure molybdenum wires
D
Used in making heat parts for electronic vacuum device, heating parts, hooks of various type of bulb, mandrels of tungsten coiled coil wire, etc.
X
Used for wire cutting
MO2
Pure moly rods
R
Used in making electronic vacuum devices, electrode for the gas discharge tube and lamp, support and lead for electron tubes.
MO3
Moly mixed with other elements
G
High - temperature structure material (printer needle, nut, screw) halogen lamp support, heating filaments, the axis in radial tube.

Chemical compositions:

Type
Kind
Molybdenum content (%)
Total amount of other elements (%)
Content of each element (%)
Content of elements appended (%)
MO1
D
99.93
0.07
0.01
-
X
MO2
R
99.90
0.10
0.01
-
MO3
G
99.33
0.07
0.01
0.20~0.60

Characteristic of cleaned Molybdenum wires:

Name
Specific Property
Application
Molybdenum wires cleaned by electrolysis
The aquadag layer can be removed by electrolysis.
Mandrels of tungsten coiled coil
Molybdenum wires cleaned in hydrogen atmosphere
The aquadag layer can be removed in hydrogen atmosphere.
Used in making supports of various type of bulb

If you have any interest in ourmolybdenum products, please feel free to contact us by email: sales@chinatungsten.com sales@xiamentungsten.com or by telephone:86 592 5129696.
