Molybdenum Sputtering Targets

Owning one hot rolling machine and three cold rolling machines, we can supply tungsten and molybdenum sheet thickness of 0.2mm to 20mm. With very good performance, these products are used to produce electrode, heater, hear-shield.

Molybdenum targets are commonly used in the anodes of X-ray tubes designed for X-ray examination of the breast.

The usefulness of a molybdenum target, in X-ray examinations of the breast, lies especially in the fact that the energy spectrum of the X-radiation emitted by molybdenum is particularly suited to the specific nature of such examinations. For, the breast has low X-ray absorption characteristics, and the anomalies sought have density levels which are very close to those of surrounding tissues. The contrast presented, between these anomalies and the surrounding tissue, in an X-ray picture is considerably improved when the X-radiation used has a narrow energy band containing the characteristic lines displayed by molybdenum.

Molybdenum targets are commonly obtained by sintering molybdenum powder. Most often, it is the anode itself that is made by sintering molybdenum powder, the target being formed by a part of the anode. The anode may be of the fixed anode or rotating anode type. Other standard methods such as, for example, vapor phase chemical deposition or, again, electrolytic deposition enable the depositing of a layer of molybdenum on the anode in order to form a target on the entire surface of the anode or on a part of this surface, along a focal track for example, in the case of a rotating anode.

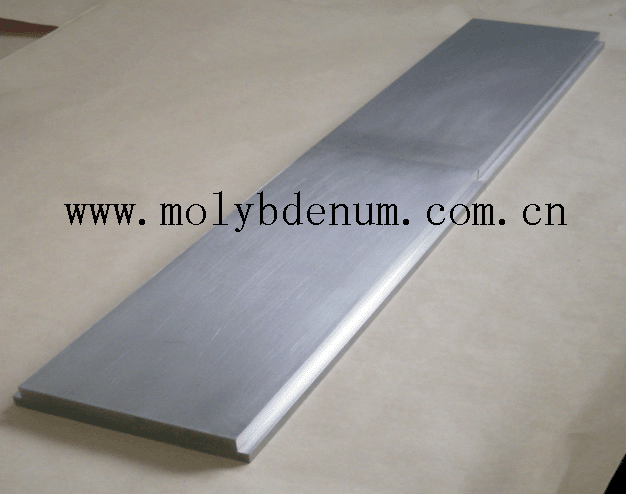

MOLYBDENUM SPUTTERING TARGETS

Additional sizes and sputtering targets produced from Molybdenum compounds are available upon request.

If you have any interest in our products, please feel free to contact us by email: sales@chinatungsten.com sales@xiamentungsten.com or by telephone:86 592 5129696.
